Inadequate tool storage secretly drains massive profits from professional environments everywhere. Workers lose valuable hours every single week hunting for misplaced wrenches and scattered sockets. Fragile diagnostic instruments suffer severe damage during bumpy transit across unpredictable job sites. Furthermore, dragging poorly designed, heavy boxes causes immense physical fatigue. Building a true field-ready mobile unit goes far beyond basic weekend DIY projects. You must apply systematic engineering and strict material science. You also need a sharp understanding of harsh environmental realities to protect your assets.
This guide delivers a transparent, evidence-oriented framework for creators and project managers alike. We will show you how to design, prototype, and assemble a professional-grade mobile tool storage system. You will learn specific structural techniques to protect your expensive gear from moisture and impact. Finally, we establish the clear threshold for when you should build a unit yourself versus when you should source it externally.
Success relies on weight-to-durability ratios: Material choice directly dictates both load capacity and mobility.
Mobility is systemic: True portability requires engineering proper caster mounts, center-of-gravity balancing, and weather-sealed joints.
Prototyping reveals layout flaws: Custom-building a single unit is ideal for workflow testing before scaling.
Scalability dictates sourcing: Labor costs for custom builds quickly outpace the ROI of partnering with a specialized portable toolbox manufacturer for fleet or multi-user rollouts.
Begin by establishing strict baseline assumptions for your daily storage needs. Calculate the precise total weight of your tool payload. A standard electrical or plumbing kit easily exceeds sixty pounds. Because of this, you must set strict tare weight limits for the empty box itself. If you pack heavy gear, the exterior shell should not add an excessive physical burden. Load capacity fundamentally opposes transit weight. Finding the sweet spot between structural integrity and lightness dictates your ultimate success.
Assess your expected job-site conditions carefully. Construction zones expose gear to heavy rain, airborne dust, and sudden mechanical impacts. Industrial facilities might present caustic chemical or oil spill hazards. Detail your exact weatherproofing necessities based on these environments. You often need protection equivalent to an IP65 or IP67 rating. This blocks blowing dust and low-pressure water jets effectively. High-impact resistance prevents catastrophic structural failure if the unit falls off a rolling tailgate.
Consider ergonomics alongside physical spatial constraints. Field technicians bend down hundreds of times a week. Poor posture leads directly to repetitive strain injuries. Define your spatial constraints to combat this reality. Design vertical storage systems to keep heavily used items near the top. Outline the absolute necessity for modular insert trays. Good accessibility minimizes wasted motion. It stops you from endlessly searching for tiny components at the bottom of a dark, disorganized bin.
Material choices dictate the operational lifespan of your build. Every substrate has unique fabrication demands and structural trade-offs. You must evaluate these constraints before cutting your first panel.
Aluminum offers an incredible strength-to-weight ratio. It resists corrosion naturally without needing extra coatings. This makes it perfect for damp marine or outdoor environments. However, creating a custom aluminum Portable Toolbox requires specialized TIG welding skills and argon shielding gas. Upfront material costs are notably higher than other options. You also need dedicated metalworking space.
Steel brings maximum security and sheer impact resistance. You can weld cold-rolled or galvanized steel relatively easily using standard MIG equipment. Unfortunately, its massive weight severely limits human portability. A fully loaded steel chest becomes a dangerous projectile in a vehicle crash if not strapped down correctly. You must also powder-coat the exterior meticulously to prevent aggressive rust.
High-grade plywood, like Baltic Birch, dampens vibrations exceptionally well. Wood remains highly customizable for carving out complex internal layouts. It handles acoustic dampening for sensitive electronic tools beautifully. Yet, unsealed plywood quickly succumbs to moisture degradation. Wood warps when exposed to heavy rain. It also becomes remarkably heavy when scaled up to larger dimensions. You must seal it aggressively using marine spar varnish.
High-impact plastics, such as HDPE or polycarbonate, solve the weight problem immediately. They are fully waterproof and inherently chemical resistant. The main drawback is home fabrication difficulty. You cannot weld or glue HDPE easily at home using standard adhesives. Plastics typically require expensive commercial injection molding for true structural integrity.
Material Option | Primary Advantage | Primary Disadvantage | Best Use Case |
|---|---|---|---|
Aluminum | High strength-to-weight ratio | Requires specialized TIG welding | Aviation, outdoor field service |
Steel | Maximum security & impact resistance | Excessive weight limits mobility | Stationary job-site vaults |
Baltic Birch Plywood | Easy interior customization | Vulnerable to moisture degradation | Sensitive electronic testing kits |
High-Impact Plastic | Waterproof and chemical resistant | Impossible to fabricate firmly at home | Plumbing, HVAC hazardous zones |
Mobility involves much more than slapping wheels on a heavy box. True portability requires engineering proper caster mounts and center-of-gravity balancing. You must evaluate caster and wheel dynamics closely. Smooth concrete floors accommodate hard polyurethane wheels perfectly. These wheels roll easily and resist flat-spotting over time. Conversely, rutted job sites demand pneumatic or all-terrain rubber tires to absorb shock. Always specify casters rated for at least 1.5 times the total expected weight. This load-rating distribution absorbs dynamic shocks when rolling over curbs or heavy extension cords.
Joinery choices determine where a box will eventually fail. We see common failure points frequently in the field. Hinges often tear out under the leverage of a heavy open lid. Bottom panels blow out when someone drops the unit abruptly. We strongly advise against relying on standard wood or sheet metal screws. Job-site vibrations back screws out over time. Instead, heavily recommend through-bolting your hardware. Backing plates and nylon lock nuts distribute stress across a wider surface area to prevent pull-out.

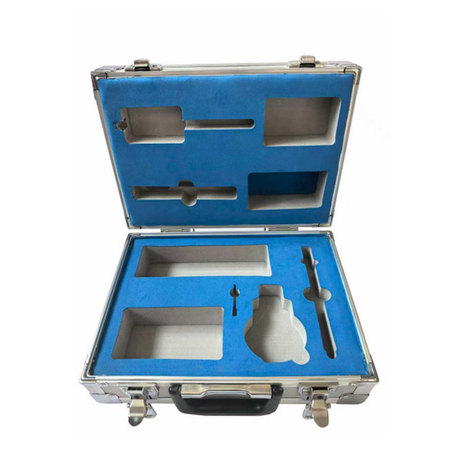

Design your internal modularity around precise measurements. Custom insert trays should match your specific inventory perfectly. Tight-tolerance compartments strictly prevent tool migration during transit. If tools shift violently, they damage each other and unbalance the rolling load. Precision fitment ensures a predictable center of gravity.
Finally, address security and transport compliance. Thieves target construction sites constantly. Recessed padlocks resist bolt cutters effectively because they hide the shackle from attacks. Integrated tubular locks provide cleaner aesthetics but require careful recess installation. If you move hazardous materials or sharp instruments, check local transport regulations. Proper locking mechanisms keep dangerous items secure during sudden vehicle braking.
Building a custom unit requires strict sequencing. Rushing the assembly process guarantees misalignments, wasted materials, and poor weatherproofing.
Step 1: Mockup and Blueprinting. Emphasize the vital importance of creating a full-size mockup. Use heavy cardboard or basic CAD software. Test your tool fitment accurately. Verify the center of gravity to ensure the unit won't tip over backward when the lid opens fully. A top-heavy design creates severe workplace hazards.
Step 2: Cutting and Tolerances. Detail the critical nature of square cuts. Uneven edges prevent proper weather-sealed joints later. Factor in the blade kerf when measuring. Use a track saw or an accurately dialed-in table saw to guarantee pristine edges.
Step 3: Structural Assembly. Outline the exact sequencing of assembly. Fasten the base to the side walls first. Install any internal structural rails next. Wait to attach the lid and hinges until the main body is perfectly square and securely clamped.
Avoid rigid adhesives: Job sites experience massive temperature fluctuations. Rigid glue cracks under thermal expansion and contraction. We highly recommend using flexible structural sealants instead. Polyurethane sealants absorb vibrations and maintain their waterproof bond year after year.
Do not ignore edge banding: If using engineered wood, prime all exposed edges before final assembly to block moisture wicking.
Avoid direct metal-to-metal friction: When building internal rails, use nylon glides to prevent metal shavings from contaminating your tools.
Custom fabrication works perfectly for a single workflow prototype. Scaling that design for a whole team changes the operational math entirely. You must perform a realistic labor cost analysis. Calculate the raw hours required for design, material sourcing, and actual fabrication. A professional-grade DIY build easily consumes forty to sixty hours. Multiply that by your standard hourly shop rate. The financial burden of custom building scales aggressively when you need multiples.
Identify the tipping point for commercial sourcing. Prototyping one unit makes logical sense for layout testing. Needing three or more units usually warrants finding an external partner. Your internal labor costs quickly outpace the return on investment of custom building. Outsourcing frees your skilled technicians to do their actual revenue-generating jobs.
You need clear vendor evaluation criteria to vet a portable toolbox manufacturer properly.
Customization capabilities: Can they faithfully replicate your successful prototype layout? Ask if they can match your tight-tolerance insert trays using CNC machining.
Material consistency & ISO compliance: Look for standardized structural warranties. Predictable quality control protects your fleet over time. You cannot afford batch-to-batch variations in metal gauge thickness.
Minimum Order Quantities (MOQs): High MOQs shut out small teams and independent contractors. Ensure they remain a viable partner for small-fleet operations before committing to a long-term relationship.
Designing and making a robust tool storage unit is an intense exercise. It requires carefully balancing spatial engineering with advanced material science. Prototyping helps you spot critical workflow flaws early. However, scaling your fleet often demands shifting from internal labor to external expertise. Follow these targeted next steps to optimize your storage strategy:
Sketch your ideal daily tool layout to visualize exact spatial and volume needs.
Weigh your essential tools to calculate precise load-bearing limits.
Build a cheap cardboard mockup to test ergonomics and check your center of gravity.
Compare your internal fabrication hourly costs against a formal manufacturer RFQ to determine the most logical financial path.
A: Material thickness depends heavily on your chosen substrate. For steel constructions, use 16 to 18-gauge sheets to balance impact resistance with manageable weight. If you fabricate with aluminum, a 1/8-inch thickness provides excellent structural rigidity. For engineered wood or plywood, use 1/2-inch to 3/4-inch boards to prevent bowing under heavy loads.
A: Start by designing overlapping lid lips to direct water away from the interior cavity. Apply closed-cell foam gaskets around the opening perimeter to form a tight compression seal when latched. Finally, run high-quality marine-grade sealants along all internal joints and exposed seams to block moisture penetration entirely.
A: Yes. Reputable B2B manufacturers routinely offer precise customization options. They utilize CNC-routed foam inserts to match your exact tool profiles. They can also weld custom sheet metal dividers based directly on your provided CAD files, ensuring your bespoke layout scales perfectly across multiple units.
A: Add your expected tool payload to the tare weight of the box. Multiply this total weight by a 30% safety margin. Divide that final number by the amount of load-bearing wheels. This formula ensures each individual caster easily survives unexpected dynamic shocks on rough, unpredictable terrain.
